A Unified Approach to Flexible Single-Use Endoscopy

AdaptivEndo’s platform of flexible single-use endoscope designs represent a wholistic approach to the address the unique needs of each clinical setting.



Larger diameter endoscopes for the gastrointestinal (GI) market incorporate complex electronic and fluid controls, as well as two axis precision articulation and brake controls for steering. The need to preserve this high-quality clinical interface while avoiding incorporating the cost of the handle into a single use endoscope resulted in the AdaptivEndo™ hybrid endoscope design.



Alternatively, smaller diameter endoscopes typically articulate in a single plane and have at most a single fluid control valve. The AdaptivEndo™ team has utilized techniques associated with other steerable minimally invasive devices, as well as clinician input to design a line of innovative single-use small diameter endoscope designs that improve the user experience while improving economics.



Regardless of the approach, all AdaptivEndo™ flexible endoscope designs are based on modular unified platform that utilize common components and designs.

Hybrid Single-Use Flexible Endoscopy Platform
(Large Diameter)

Advantages​​

  • Compatible with other endoscopy and practice management systems

  • Quality clinician interface maintained and enhanced

  • Compatible with standard support equipment and tubing

  • Clinician customizable handle (color, size and programming)

  • Any scope, anywhere, anytime (OR, ER, and rural settings)

  • No wetted valves contained in the handle

  • All direct and indirect exposed components are discarded

  • Reduced cost and reduced waste-stream



Duodenoscope

The AdaptivEndo Duodenoscope is a specialized endoscope used primarily for ERCP, but also for Cholangioscopy. It is side-viewing and enables direct visualization of the major duodenal papilla en-face. The steering and elevator response provides a familiar interface for clinicians. The single-use Duodenoscope cartridge eliminates reprocessing and the related infection risks.

Specifications



  • Working length: 124 cm

  • Insertion tube diameter: 12.5 mm

  • Tool channel diameter: 4.2 mm

  • 4-way deflection (up/down/right/left): 120°/90°/110°/90°

  • CMOS imaging sensor with LED illumination

  • Integrated suction, insufflation, and camera flush controls

  • Image/video capture and programmable buttons

  • Thumb operated software navigation


Duodenoscope

GI Setup Demo
Play Video

Single-use Duodenoscope and Cholangioscope setup



Pediatric Duodenoscope

Specifications



  • Working length: 124 cm

  • Insertion tube diameter: 8.0 mm

  • Tool channel diameter: 2.2 mm

  • 4-way deflection (up/down/right/left): 120°/90°/110°/90°

  • CMOS imaging sensor with LED illumination

  • Integrated suction, insufflation, and camera flush controls

  • Image/video capture and programmable buttons

  • Thumb operated software navigation


Pediatric Duodenoscope



Gastroscope

Gastroscope Duodenoscope Control Handpie

The AdaptivEndo Gastroscope Cartridge is used for general upper diagnostic and therapeutic procedures. Two Gastroscope cartridges will be offered.  The first cartridge incorporates a smaller insertion tube for pediatric applications or where esophageal/duodenum patency is an issue. The second cartridge incorporates a larger insertion tube with a therapeutic (3.7 mm) tool channel.​

Gastroscope

Specifications

  • Working length: 103 cm

  • Insertion tube diameter: 10 mm / 12.5 mm

  • Tool channel diameter: 3.2 mm (10 mm) / 3.7mm (12.5 mm)

  • 4-way deflection (up/down/right/left): 210°/180°/100°/100°

  • CMOS imaging sensor with LED illumination

  • Tissue irrigation channel (12.5 mm)

  • Integrated suction, insufflation, and camera flush controls

  • Image/video capture and programmable buttons

  • Thumb operated software navigation


Gastroscope Duodenoscope Control Handpie

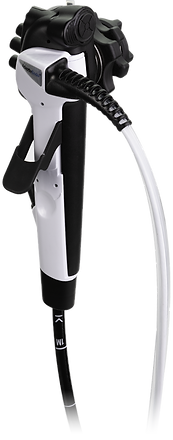

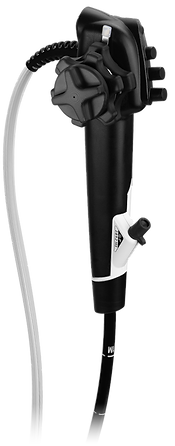

Pediatric Gastroscope

Pediatric Gastroscope

Specifications

  • Working length: 104 cm

  • Insertion tube diameter: 8.0 mm

  • Tool channel diameter: 2.2 mm

  • 4-way deflection (up/down/right/left): 210°/180°/100°/100°

  • CMOS imaging sensor with LED illumination

  • Integrated suction, insufflation, and camera flush controls

  • Image/video capture and programmable buttons

  • Thumb operated software navigation


Gastroscope Duodenoscope Control Handpie

Colonoscope/Sigmoidscope

AdaptivEndo has designed five (5) different cartridges for lower GI procedures. The shortest is a sigmoidoscope with a 12.5 mm tool channel. Colonoscope cartridges have been designed with options for two (2) different diameter insertion tubes (10 mm and 12.5 mm), as well as two (2) different lengths (long versus standard). The 12.5 mm insertion tube versions provide a large 3.7 mm tool channel and a tissue irrigation nozzle for therapeutic applications.​

Colonoscope/Sigmoidscope

Specifications

  • Working length: 168 cm / 133 cm / 73 cm

  • Insertion tube diameter: 10 mm / 12.5 mm

  • Tool channel diameter: 3.2 mm (10 mm) / 3.7mm (12.5 mm)

  • 4-way deflection (up/down/right/left): 180°/180°/160°/160°

  • CMOS imaging sensor with LED illumination

  • Tissue irrigation channel (12.5 mm)

  • Integrated suction, insufflation, and camera flush controls

  • Image/video capture and programmable buttons

  • Thumb operated software navigation

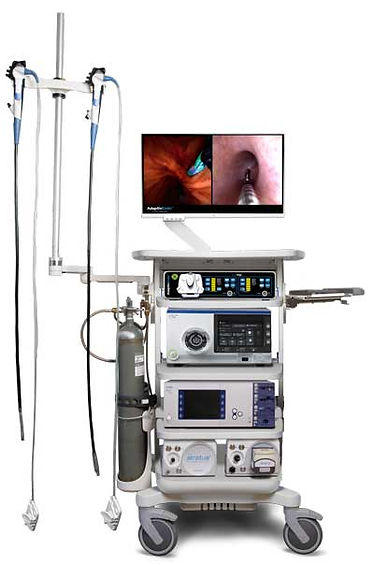

DuoVue™ Control Console


The AdaptivEndo™ DuoVue control console is only 3.5" tall and can easily be added to an existing tower stack. The DuoVue provides the ability to operate two (2) endoscopes simultaneously. The DuoVue control console supports procedures across multiple disciplines, including urology and gastroenterology. Examples of dual endoscope applications include ERCP/cholangioscopy (gastroenterology) and PCNL (urology). In addition to supporting dual endoscope procedures, the DuoVue is also capable of interfacing with any AdaptivEndo™ hybrid endoscope and up to two AdaptivEndo™ single-use endoscopes.


DuoVue™ Control Console

Specifications

  • Dimensions: 34.9 cm width x 8.3 cm height x 28 cm depth

  • Insufflation compatibility: Any industry standard insufflator with a standard tubing set

  • Irrigation compatibility: Any industry standard irrigation pump with a standard tubing set

  • Hybrid Endoscope fluid control: AdaptivEndo Quick Connect Fluid Control Cartridge with sealed fluid pathways (video 1 only)

  • Gain control: Three (3) levels (video 1 and 2)

  • Illumination levels: Eight (8) levels (video 1 and 2)

  • Illumination On/Off: Quick on/off switch for backloading of guidewires (video 1 and 2)

  • Transillumination: Quick full power settings switch for gastroenterology applications (video input 1 only)

  • Video inputs: Two shielded barrel style video inputs (video 1 and 2)

  • Video outputs: 1920x1080 HDMI (both video outputs). Additional video outputs available via TEAC UR-4MD

  • Video/Image recording: 1920x1080 video and images stored to removable USB drives (video 1 and 2)

Single-Use Endoscopy Platform

(Small Diameter)

Advantages​​



  • Clinician driven designs and ergonomics

  • Integrated fluid controls

  • Imaging system equals or surpasses the competition

  • Innovative designs and processes for optimal economics

  • EndoVue™ Console is compatible with all small diameter scope
    Note: The Cholangioscope is used with the AdaptivEndo GI-Vue™ Console



Cholangioscope

Compatible with the GIVue Console, the AdaptivEndo Cholangioscope provides 4-way steering and works in concert with the AdaptivEndo Single-use Hybrid Duodenoscope. The AdaptivEndo Cholangioscope can be seamlessly added to the GIVue™ Console during ERCP, mid-procedure. This allows the clinician to incorporate cholangioscopy when direct visualization is required.

Specifications

  • Working length: 210 cm

  • Insertion tube diameter: 3.5 mm

  • Tool channel diameter: 1.3 mm

  • 4-way deflection: 70°/70°/70°/70°

  • CMOS imaging sensor with dual LED illumination

  • Dual tissue irrigation channels

  • Integrated irrigation control

  • Compatible with both the GIVue and EndoVue Consoles


Cholangioscope



Choledocoscope

Specifications

  • Working length: 380 cm

  • Insertion tube diameter: 3.1 mm

  • Tool channel diameter: 1.3 mm

  • 2-way deflection: 180°/180°

  • CMOS imaging sensor with dual LED illumination

  • Integrated variable control for primary irrigation

  • Tool port irrigation backflow preventer

  • Compatible with the GIVue and EndoVue Consoles


Choledocoscope



Ureteroscope

The clinical need for a single-use ureteroscope with quality imaging and a large tool channel is significant. Reusable ureteroscopes require frequent repairs costing thousands of dollars and often undergo only soak HLD to avoid procedural delays. The AdaptivEndo ureteroscope provides a cost effective alternative with integrated irrigation control. The AdaptivEndo ureteroscope incorporates innovative construction techniques to make single-use ureteroscopes an economically viable alternative.

Specifications

  • Working length: 680 cm

  • Insertion tube diameter: 3.1 mm

  • Tool channel diameter: 1.2 mm

  • 2-way deflection: 270°/270°

  • CMOS imaging sensor with dual LED illumination

  • Integrated variable control for primary irrigation

  • Secondary port for single action pump or suction

  • Tool port irrigation backflow preventer

  • Single umbilical cord (fluids and signals)

  • Compatible with the GIVue and EndoVue Consoles


Ureteroscope

Ureteroscope_Articulation-Demo_hexbkgd.j


Cystoscope

Specifications

  • Working length: 390 cm

  • Insertion tube diameter: 5.4 mm

  • Tool channel diameter: 2.2 mm

  • 2-way deflection: 210°/210°

  • CMOS imaging sensor with dual LED illumination

  • Integrated variable control for primary irrigation

  • Secondary port for aspiration

  • Tool port irrigation backflow preventer

  • Single umbilical cord (fluids and signals)

  • Compatible with the GIVue and EndoVue Consoles


Cystoscope



Hysteroscope

Specifications

  • Working length: 240 cm

  • Insertion tube diameter: 3.1 mm

  • Tool channel diameter: 1.2 mm

  • 2-way deflection: 100°/100°

  • CMOS imaging sensor with dual LED illumination

  • Integrated variable control for primary irrigation

  • Compatible with the GIVue and EndoVue Consoles


Hysteroscope



EndoVue Console

The AdaptivEndo™ EndoVue console provides a simple image processing solution for small diameter single-use endoscopes in medical offices, ER, and OR settings. The EndoVue console can be mounted on a mobile pole or easily added to an endoscopy cart. The EndoVue console offers the same upscaling and image enhancement features associated with the DuoVue console.

Specifications

  • Dimensions: 20 cm width x 7.5 cm height x 22 cm depth

  • Gain control: Three (3) levels

  • Illumination levels: Eight (8) levelsIllumination On/Off: Quick on/off switch for backloading of guidewires

  • Video input: Shielded barrel style video input

  • Video outputs: 1920x1080 HDMI. Additional video outputs available via TEAC UR-4MD

  • Video/Image recording: 1920x1080 video and images stored to removable USB drives


EndoVue Console
